2.3.2 Connect Programming Cable
The programming cable connects the BL1810 to the PC running Dynamic C to download
programs and to monitor the BL1810 during debugging.
Connect the 10-pin connector of the programming cable labeled PROG to header J3 on
the BL1810 as shown in Figure 3. Be sure to orient the marked (usually red) edge of the
cable towards pin 1 of the connector. (Do not use the DIAG connector, which is used for a
normal serial connection.)
NOTE: Use only the programming cable that has a red shrink wrap around the RS-232
level converter (Z-World part number 101-0513), which is supplied with the Develop-
ment Kit. Other Z-World programming cables might not be voltage-compatible or their
connector sizes may be different.
U4
U1
J4
J5
BL1810
J1
J2
GND
PA0
PA2
PA4
PA6
GND
PB0
PB2
PB4
PB6
WDO
GND
PE6
PE4
PE2
PE0
HV0
HV2
K
GND
VCC
PA1
PA3
PA5
PA7
GND
PB1
PB3
PB5
PB7
PCLK
PE7
PE5
PE3
PE1
GND
HV1
HV3
+RAW
VCC
U3
Rabbit 2000
Y3
JP1
U5
SRAM
U6
RS-485
VCC
RXB
TXB
PC0
PC2
PC4
PC6
AD0
DA0
PD0
PD2
PD4
PD6
GND
485?
VCC
SM0
IOBEN
GND
/RST
GND
RXC
TXC
PC1
PC3
PC5
PC7
AGND
DA1
PD1
PD3
PD5
PD7
GND
485+
VCC
SM1
STAT
VBAT
GND
RESET
J3
JACKRABBIT Z-World, Inc.
Colored side
lines up with
pin 1
Programming
connector
PROG
PROTOTYPING BOARD
Diagnostic
connector
DIAG
To
PC COM port

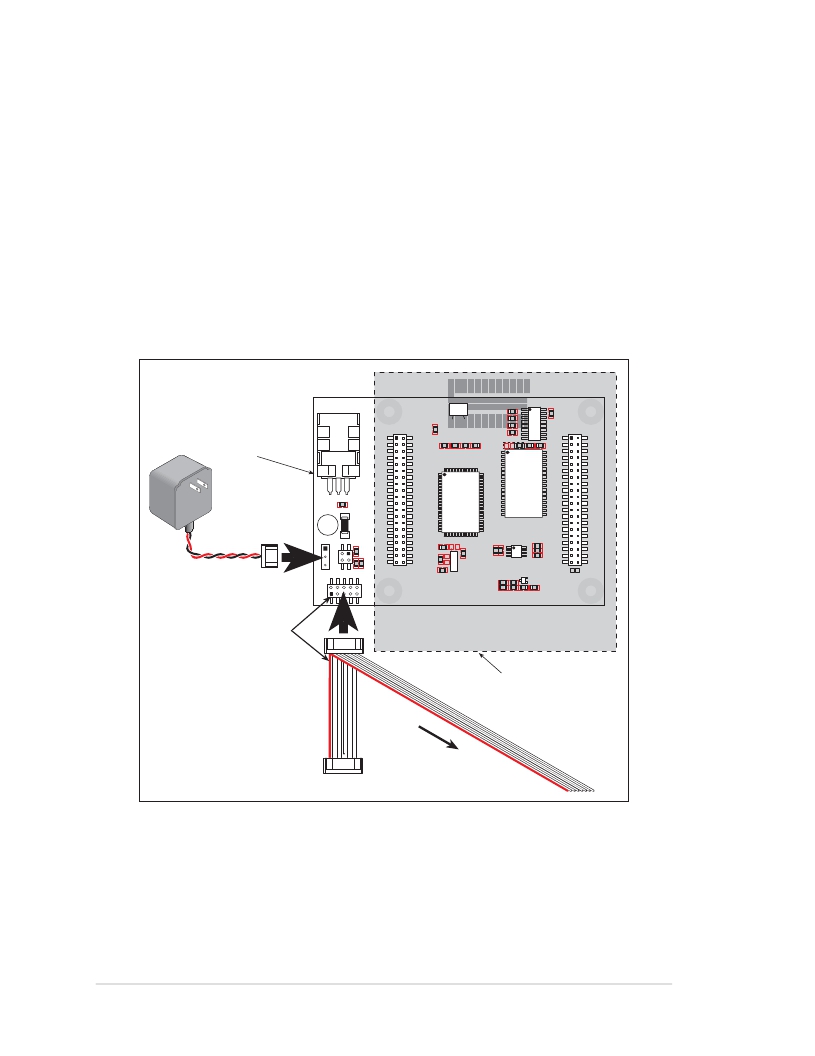

Figure 3. Power and Programming Cable Connections to the BL1810
Connect the other end of the programming cable to a COM port on your PC.
NOTE: Some PCs now come equipped only with a USB port. It may be possible to use
an RS-232/USB converter with the programming cable supplied with the Rabbit 2000
Development Kit. An RS-232/USB converter is available through the Z-World Web store.
12
Rabbit 2000 Development Kit
